How can I display the separate layers in a vector dataset?

We support batch uploads of vector files from either DXF, SHP, KML or Geojson. GDB is not supported.

Note: This is currently limited to displaying 25 files per upload.

Prerequisites

The CAD file(s) will need to be split into seperate file before uploading to Pointerra.

Process

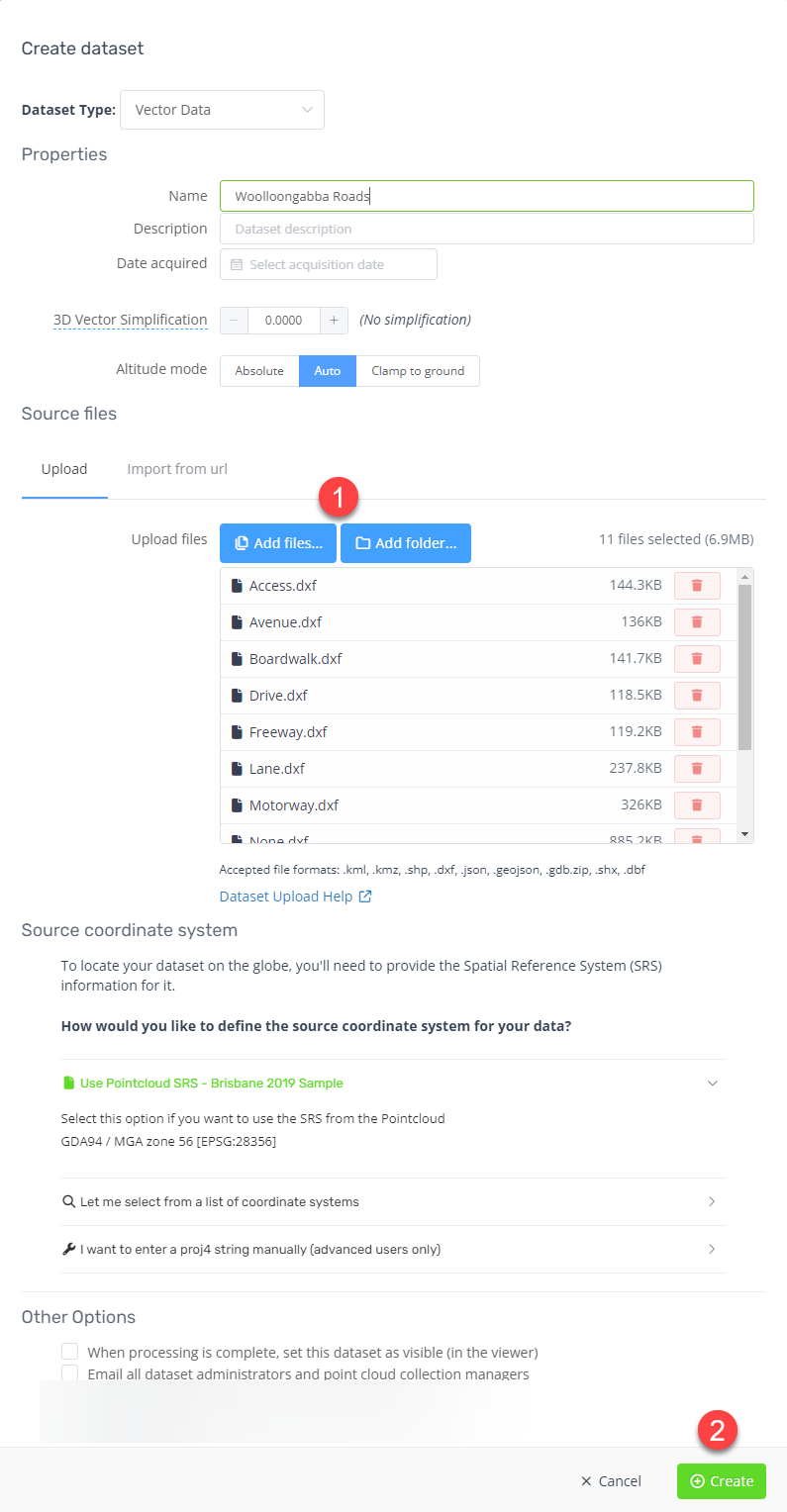

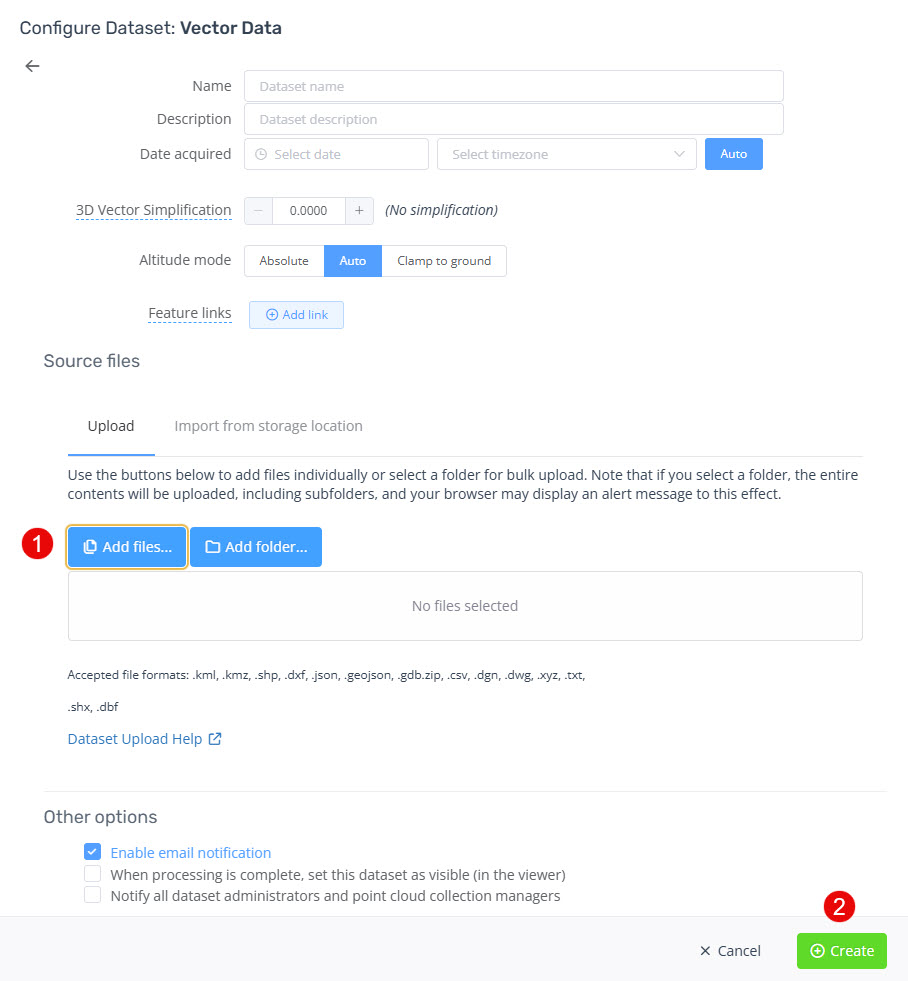

1. Add your multiple vector files.
2. Click Create

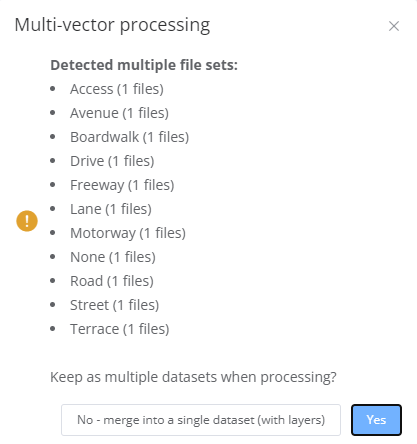

3. The Multi-vector processing dialogue box will pop out.
   Clicking No will merge the files into a single dataset but with layers.
   Clicking Yes will do a batch upload of each individual file and will therefore become a seperate datasets.

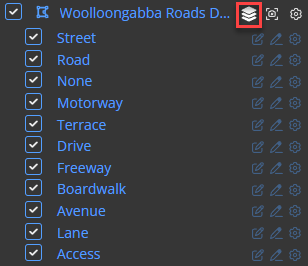

4. Once all files have been processed the individual layers can be viewed as below. Each layer's style can be individually edited.
