Custom Processing: Clip Point cloud

Clipping a Single Mission or Merged (Multi-Mission) Job

Clipping jobs relies on the individual missions having being processed through the existing 'per mission' or 'merged' calibrate processing workflow in Pointerra. For jobs to be eligible to be clipped they must have a "Complete" status on the Jobs Review page.

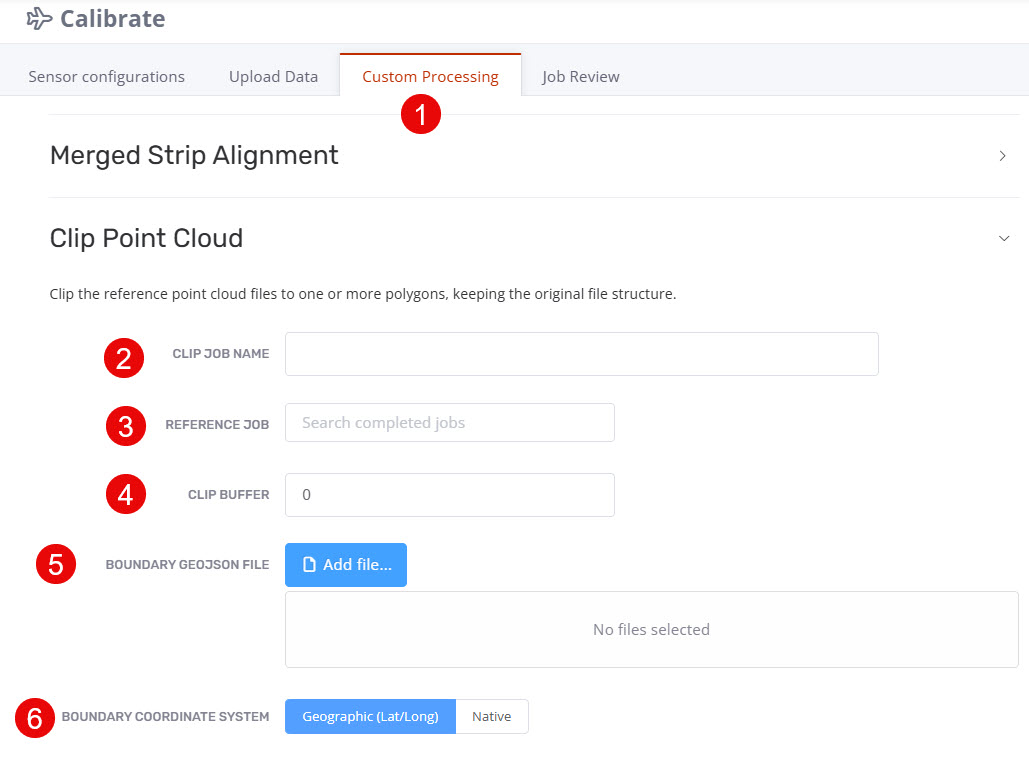

To select the input parameters for Clip Point Cloud job load the Calibrate Processing>Custom Processing tab (1):

• Clip Job Name - note all clipped jobs will contain a (Clipped) suffix to the end of the Job name. (2)
• Select Reference Job - this should be a calibrate processing that has completed. (3)
• Clip Buffer - This is the if you wish to include a buffer to your clipping boundary (4)
• Select Boundary GeoJSON File - select from the geojson boundary file (5)
• Boundary Coordinate System - select either Geographic or Native. (6)

Submit for processing:

• Select whether to receive Email notifications. (1)
• Select Submit. (2)
